Vacuum Gas Atomization Equipment
- Specializing in this field for many years
- High quality products and favorable prices
- Quick delivery and satisfying service
- Hot-selling all over the world
Gas atomization equipment is characterized by small environmental pollution, high degree of ballshape powder, low oxygen content and fast cooling rate and so on. Through many years’ constant innovation and improvement, our company has updated our gas gas atomization machine powder manufacturing technique and technology several times
in order to produce metal and alloy powders of high performance. Currently, the technology has
become the leading factor to support and promote atomization powdermanufacturing equipment, new material research and new technology development.
2. Features
1.1 Meeting the requirements of manufacturing metals and its alloy that can not manufactured by water atomization.
1.2 Manufacturing ball-shape or sub ball-shape powder.
1.3 Manufacturing numerous special alloy powders for overcoming aliquation due to fast solidification.
1.4 Adopting suitable processing method to make the powder’s particle reach the required range.
3. Main technical parameters
| Model of gas atomization equipment |
EF- 10 |
EF - 25 |
EF - 50 |
EF - 100 |
EF- 200 |
| Capacity ( calculated in steel) |
10kg |
25kg |
50kg |
100kg |
200kg |
| Pressure rising rate |
0.133Pa/min |
| Ultimate vacuum degree |
6 × 10-2Pa |
| Working vacuum degree |
6 × 10-1Pa |
| Input power source |
380V, three-phase, 50Hz |
| Output frequency |
4000 Hz |
2500 Hz |
2000Hz |
1000Hz |
1000Hz |
| Medium power of power source |
60 kW |
100 kW |
160kW |
160kW |
250kW |
| Output voltage |
375V |
| Cooling water pressure |
0.2~0.4MPa |
| Water inflow temperature |
20 C |
4. Structures

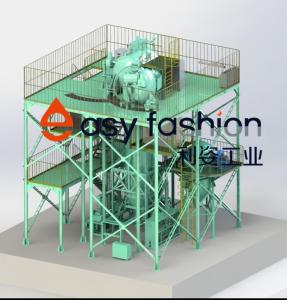

The metal powder gas gas atomization equipment mainly contains the following parts: Medium frequency smelting furnace(10kg,25kg, 50kg, 100kg, 200kg), holding furnace (10kg,25kg), atomization system, atomization tank, powder and dust collecting system, gas supply system, water cooling system, control system, medium frequency power source, holding furnace power supply system(10kg, 25kg level ones are not equipped with holding furnace) and so on.
