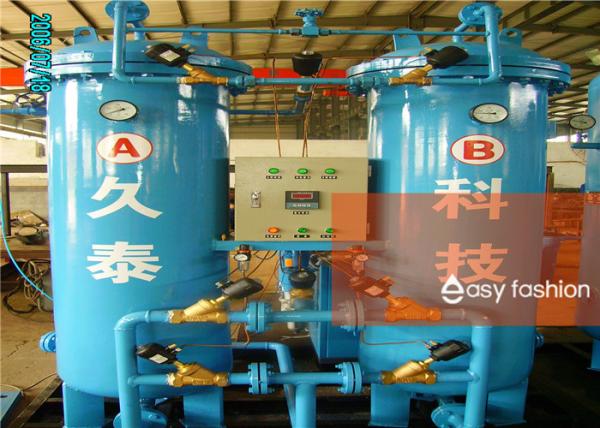

Industrial Nitrogen Generator For Quenching Furnace Quick Process
Features
· Stable pure nitrogen production
· Adopts high quality imported carbon molecular sieve which has features of huge adsorption capacity, high pressure resistance, long service life, etc..
· High-quality imported pipe-type pneumatic valve is adopted to ensure stable and reliable operation. The nitrogen generator also has strong technical strength and offers best after-sales service. With containerization characteristic of equipment, on-site installation only need to connect the sources of gas, power and water.
· Low cost:
PSA advanced process is a simple nitrogen generating method, which can produce nitrogen in a few minutes after it boot up, Its energy consumption and production cost are lower than the cryogenic air-separation nitrogen’s.
· Reliable performance:
Imported microcomputer control to realize automatic operation; operator don’t need to get special training; just press the start switch, it can automatically run to achieve continuous production.
Technical specifications:
| Model |
EFPSA-595-10 |
EFPSA-595-15 |
EFPSA-595-20 |
EFPSA-595-30 |
EFPSA-595-60 |
EFPSA-595-80 |
| Gas capacity (Nm3/h) |
10 |
15 |
20 |
30 |
60 |
80 |
| Rated power (kW) |
7.5+1.5 |
11+1.5 |
11+1.5 |
15+1.5 |
37+1.5 |
37+1.5 |
| Rated voltage of power supply |
380V |
| Outlet pressure |
0~0.6MPa (adjustable) |
| Purity |
99.90% |
| Dew point |
<-40°C |
| Purity after purification |
100.00% |
| Dew point after purification |
<-60°C |
| Control system |
PLC automatic control |
| Information above is standard configuration. Adjustment is available upon request. |
Overview:
Nitrogen generator is designed and manufactured by adopting pressure swing adsorption technology to generate nitrogen.
