Industrial Vacuum Directional Solidification With Automatic Control

Name: Industrial Vacuum Directional Solidification With Automatic Control
Brand: EasyFashion
Price: 1 USD

Brand Name : EasyFashion

Model Number : /

Certification : ISO9001:2008

Place of Origin : China

MOQ : 1 set

Price : To be discussed

Payment Terms : T/T, Western Union

Supply Ability : 15~25 sets per year

Delivery Time : 90~120 days

Packaging Details : standard packing, wooden cases

Voltage : 380±10V 50Hz

Holding furnace heating method : Resistance heating (induction heating)

Working vacuum degree : 6.67×10-2Pa/10Pa

Max. temperature : 1600℃

Working temperature : ≤1550℃

Heating zone : Customization

Contact Now

Vacuum Directional Solidification

I. Overview

This series of vacuum directional solidification furnace is a modern equipment working for melting metal or alloy with medium-frequency induction heating under vacuum, forming thermal gradient with specialized-designing holding furnace and cooling system, and production of directional solidified and single-crystal parts by pulling down mechanism. It can strictly control temperature and alloy content of materials.

This furnace is primarily applied to the production of silver-based, iron-based, and cobalt-based high-temperature alloys, and the high-quality products made of these alloys are commonly practiced into aerospace turbine engine industry, vehicle, chemistry field and entertaining fields.

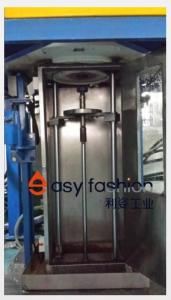

Industrial Vacuum Directional Solidification With Automatic Control

II. Technical specifications

Model	EF-ZKD-5	EF-ZKD-10	EF-ZKD-25	EF-ZKD-50	EF-ZKD-100
Rated loading capacity (kg)	5	10	25	50	100
Pressure rising rate (Pa/h)	≤0.67
Ultimate vacuum	6.67×10-3Pa/1Pa
Working vacuum degree	6.67×10-2Pa/10Pa
Input power supply	3 phase, 380V±10%, 50Hz
Output frequency (Hz)	4000		2500
Supply power (kW)	30		60	100/160	160/200
Total power (kVA)	35		100	240	280
Output voltage (V)	375
Max. working temperature (℃)	1700
Total weight(calculated value (t)	3	3.5	4	5	8
Cooling water consumption (m3/h)	2.1	2.4	2.7	3.6	4.8
Cooling water pressure (Mpa)	0.2~0.4
Input water temperature (℃)	20
Holding furnace power	Two stage (three stages)
Holding furnace heating method	Resistance heating (induction heating)

Note: The above is standard configuration which is adjustable based on customer requirements.

III. Features

Overall designing furnace, occupying small area
Intelligent control system
Process accurate controlling technology
Security Advantages
