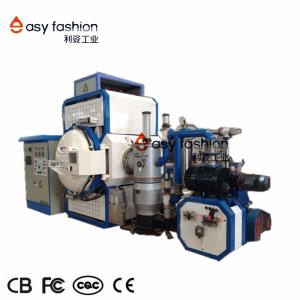

Degreasing Vacuum Sintering Furnace 380V 50Hz For Stainless Steel Base

Product Categories

Easy Fashion Metal Products Co., Ltd.

Contact Now

Name: Degreasing Vacuum Sintering Furnace 380V 50Hz For Stainless Steel Base
Brand: EasyFashion Industry
Price: 1 USD

Brand Name : EasyFashion Industry

Model Number : GN3312A

Certification : CE Certificate

Place of Origin : China

MOQ : 1 set

Supply Ability : 10 set per year

Delivery Time : 120 days

Packaging Details : Standard packed by wooden cases and container.

（cooling water ≤30°C） : From 800°C to opening door, ≤ 6 h

Dimension of furnace : 4500×4250×3500 mm

Cooling speed （without loading） : From working temp. to 800°C, ≤ 2 h

Temperature increasing rate (without loading) : 10°C/min（≥1000℃）

Wax collecting rate : ≥98﹪

Temperature uniformity : ≤±7°C (Ceramic ring)

Contact Now

Degreasing Completely Vacuum Sintering And De-waxing Furnace For Stainless Steel Base

Main Description

Integrated Vacuum Degreasing and Sintering Furnace integrate the functions of de-waxing, sintering, atmosphere controlling and cooling etc.

Technical specifications

Model	GN5518A	GN3312A
Rated voltage	380 V 50 Hz, three-phase five-wire
Dimension of furnace	4500×5400×3500 mm	4500×4250×3500 mm
Dimension of usable space	500×500×1800 mm	300×300×1200mm
Max. load weight	1500 kg	500 kg
Weight of furnace	≈5500 kg	≈4000 kg
Stand area	≈5200×6000 mm	≈4500×4000mm
Power	340 kVA	200 kVA
Max. testing temperature	1600°C
Max. working temperature	≤1550°C
Temperature control method	3 zones
Temperature uniformity	≤±7°C (Ceramic ring)
Hc deviation	≤±0.3KA/M
Com deviation	≤±0.2%
Temperature increasing rate (without loading)	15°C/min(≤1000℃)； 10°C/min(≥1000℃)
Ultimate vacuum	≤2Pa, tested in cold and clean chamber
Vacuum Leak rate	≤2Pa/h(24 hours average), tested in cold and clean chamber
Pumping speed (in cold and clean chamber)	≤20 min., pumping from 1.13×10⁵Pa to 5Pa
Wax collecting rate	≥98﹪
Cooling speed (without loading) (cooling water ≤30°C)	From working temp. to 800°C, ≤ 3 h From 800°C to opening door, ≤ 6 h	From working temp. to 800°C, ≤ 2 h From 800°C to opening door, ≤ 5 h

Degreasing Vacuum Sintering Furnace 380V 50Hz For Stainless Steel Base
